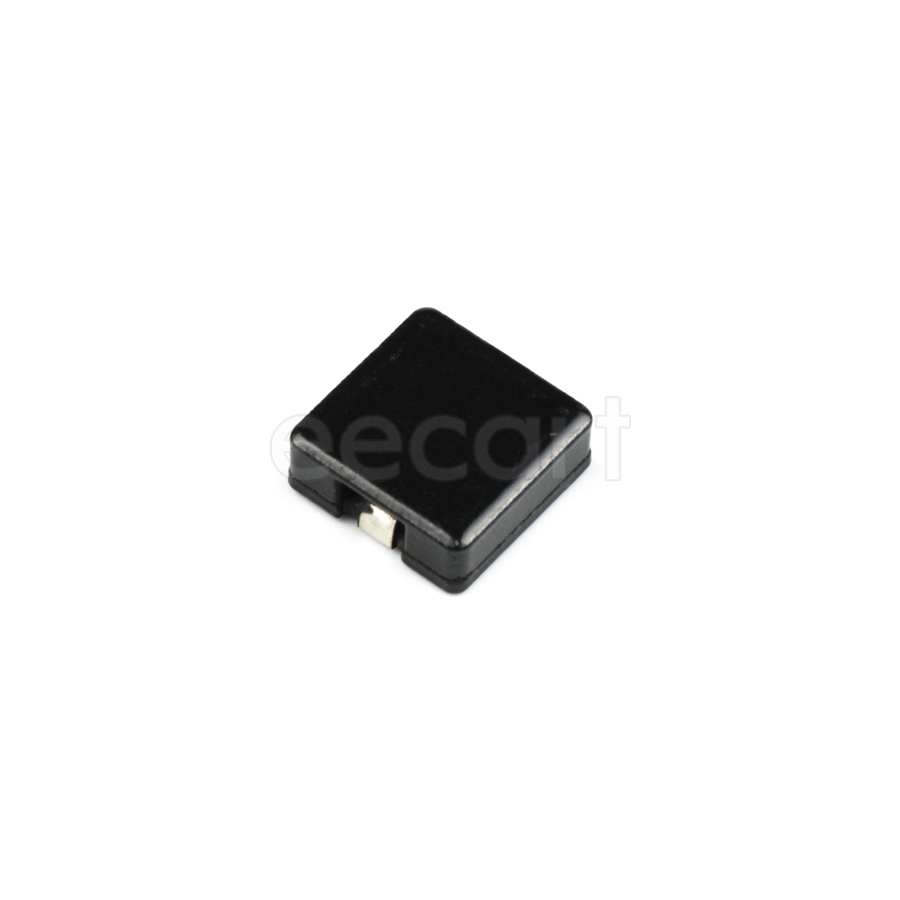

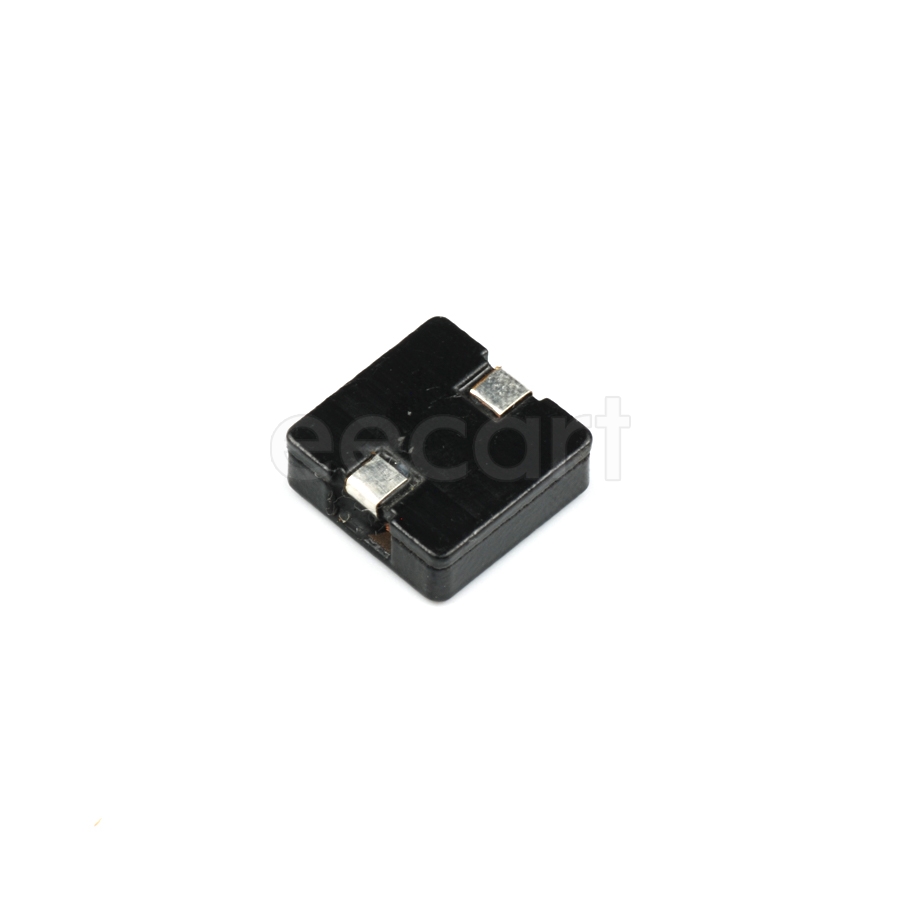

7443550101
Manufacturer:
Wurth Electronics
Mfr.Part #:
7443550101
Datasheet:
Description:
Fixed Inductors 13.00mmL×12.80mmW×5.00mmH SMD/SMT 10 µH 20 % 8.5 A 14.1 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 13.0048 mm |
| Width | 12.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 4.7 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 18 MHz |
| Current Rating | 8.5 A |
| DC Resistance (DCR) | 14.1 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| RMS Current (Irms) | 8.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 8.5 A |
| Series Resistance | 14.1 Ω |
| Saturation Current | 10 A |
| Core Material | Iron Powder |
Stock: 1023
Distributors
pcbx
pcbxUnit Price$2.17742
Ext.Price$2.17742
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.17742 | $2.17742 |
| 10 | $2.13362 | $21.33620 |
| 25 | $2.05067 | $51.26675 |
| 50 | $1.97094 | $98.54700 |
| 100 | $1.88960 | $188.96000 |
| 300 | $1.40782 | $422.34600 |
